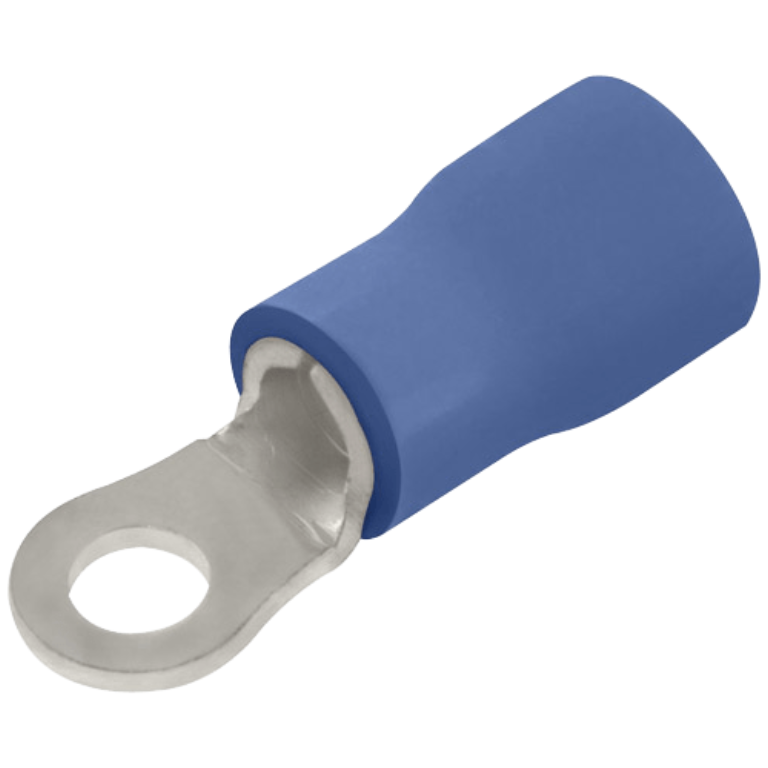

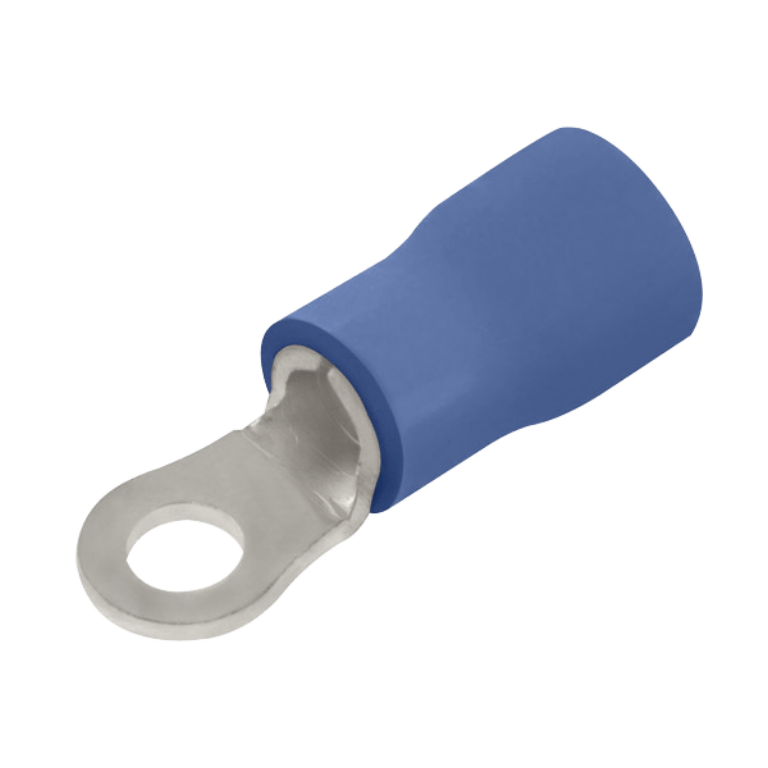

Pre Ins Terminal Blue Ring 5mm

Part Number: CRIMPBR5 Category:

ONLY £

7 in stock (can be backordered)

Description

Sold by Unicrimp, this is the QBR5 Terminal Ring 5mm Blue pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion

Additional information

Product

Terminal

Type

Ring Tongue

Qualifier
Current Rating (max)

24 A

Voltage (max)

600 V

Insulated

Terminal Material

Copper

Insulation Colour

Blue

Cable Size Range

1.5|2.5 mm2

Hole/Stud Size

5 mm

Insulation Material

PVC

Colour

Finish

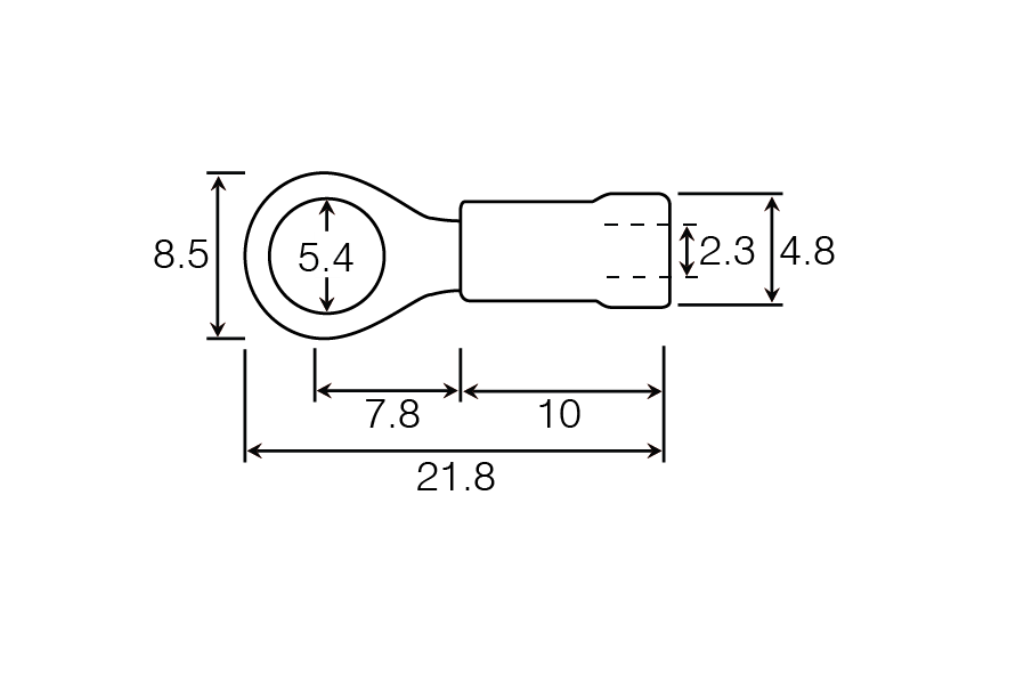

Diameter (mm)

4.8 mm

Length

21.8 mm

Width

Working Temperature

-10|75 Degrees C

Standards

Leeming Bar 7
Thirsk 3
Catalogue Page
Technical Data Sheet
