1.5 Twin & Earth Twin Brown 100M Coil
ONLY £
Available on back-order
Description

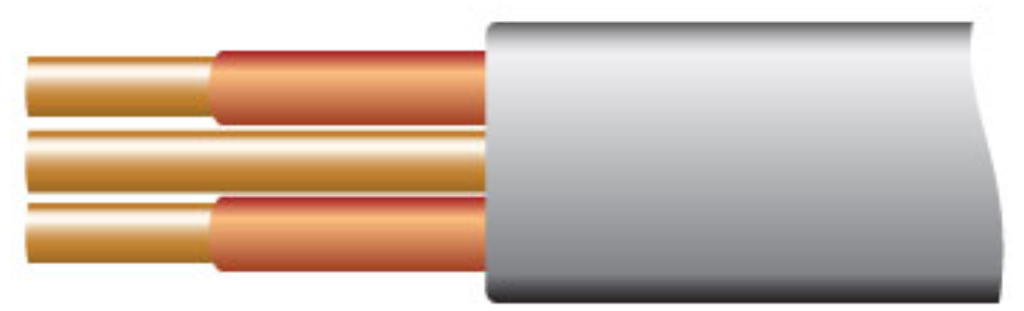

The most widely used wire for domestic use. Boxed & British made Prysmian 6242Y2B 1.5mm Twin & Earth Grey Sheath Twin Brown 100M Coil is comprised of three wires, one live, covered in brown casing, one neutral, covered in blue casing, and an earth which is bare.
Additional information
| Product | Cable |
|---|---|
| Type | Twin & Earth |
| Number of Cores | 3 |
| Core Identification | Coloured/Bare CPC |
| Earth Core | Y |
| Conductor Material | Copper |
| Conductor Construction | Solid Plain Annealed |
| Insulation Type | PVC |
| Armoured | N |
| Fire Resistant | N |
| Minimum Bending Radius | 39.6 |
| Drain Wire | N |
| Magnetic armour | N |
| Earthed Metallic Covering | N |
| Core Colours | Brown/Brown |
| Outer Sheath Material | PVC |
| Outer Sheath Colour | Grey |
| Cable Diameter | 9.9 mm |
| Conductor Size | 2.5|1.5 mm2 |
| Minimum Temperature Rating | -15 Degrees C |
| Maximum Temperature Rating | 70 Degrees C |
| Voltage Rating | |
| Conforming Standard | BS6004 BSEN60332-1-2 BS7655 BSEN50363-3 BS60228 |
| LU1085 Approved? | N |
| Unit Weight |
| Leeming Bar | 0 |
|---|---|
| Thirsk | 0 |
