Pre Ins Terminal Blue Fully Ins Push-On 6.3X0.8
ONLY £
Available on back-order
Description

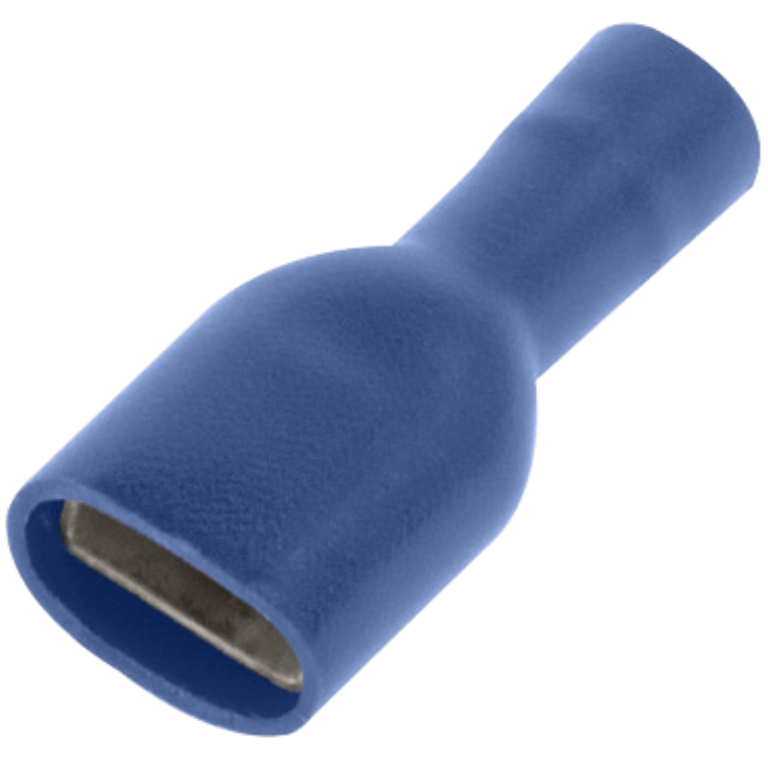

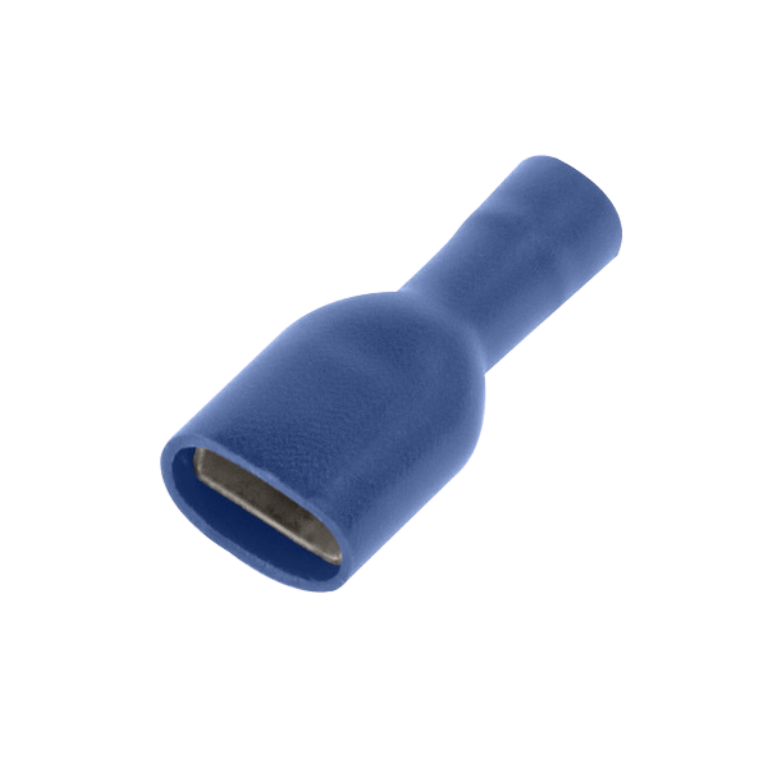

Sold by Unicrimp, this is the QBFPO63F Terminal Blue Female Push On 6.3mm pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion
Additional information
| Product | Terminal |
|---|---|
| Type | Female Push On |
| Qualifier | |
| Current Rating (max) | 15 A |
| Voltage (max) | 600 V |
| Insulated | |
| Terminal Material | Copper |
| Insulation Colour | Blue |
| Cable Size Range | 1.5|2.5 mm2 |

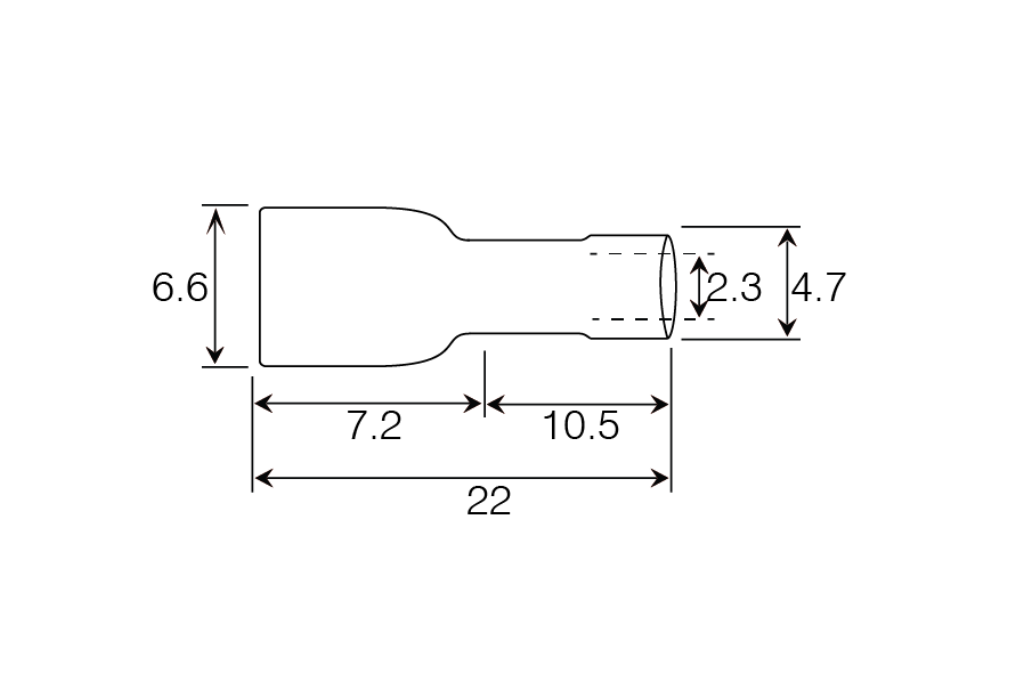

| Tab/Pin Size | 6.6 mm |
| Insulation Material | PVC |
| Colour | |
| Finish | |
| Diameter (mm) | 4.7 mm |
| Length | 22 mm |
| Width | |
| Working Temperature | -10|75 Degrees C |
| CE Approved | |
| Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No 65 ANSI/UL 486C CSA-C22.2 No. 188 ANSI/UL 310 CSA-C22.2 No. 153 |
