Pre Ins Terminal Red Ring 5mm
ONLY £
5 in stock (can be backordered)
Description

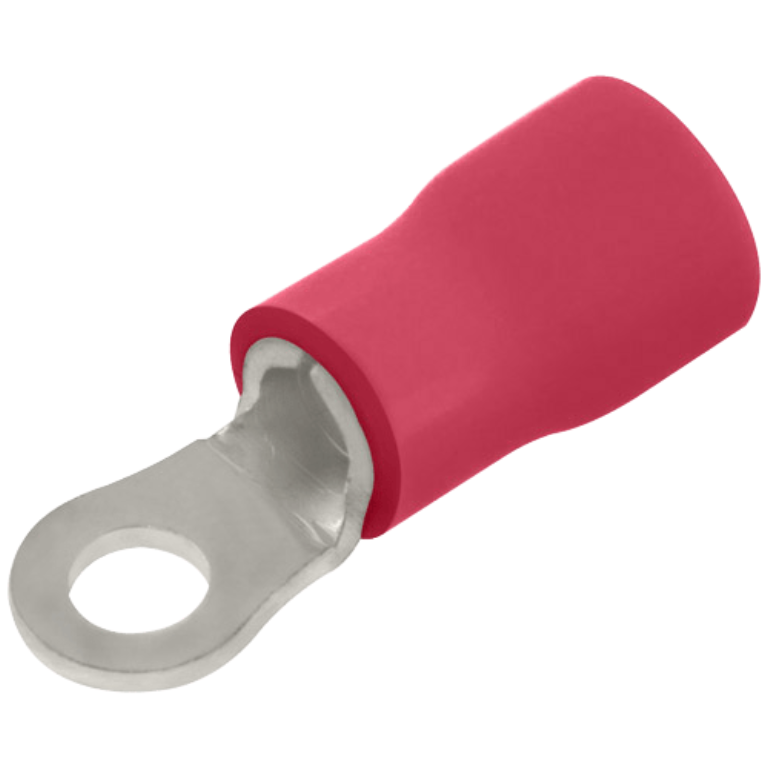

Sold by Unicrimp, this is the QRR5 Terminal Ring Red , stud size 5mm , pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion
Additional information
| Product | Terminal |
|---|---|
| Type | Ring Tongue |
| Qualifier | |
| Current Rating (max) | 19 A |
| Voltage (max) | 600 V |
| Insulated | |
| Terminal Material | Copper |
| Insulation Colour | Red |
| Cable Size Range | 1.5 mm2 |
| Hole/Stud Size | 5 mm |
| Insulation Material | PVC |
| Colour | |
| Finish | |
| Diameter (mm) | 4.3 mm |
| Length | 21 mm |
| Width | |
| Working Temperature | -10|75 Degrees C |
| Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No 65 ANSI/UL 486C CSA-C22.2 No. 188 ANSI/UL 310 CSA-C22.2 No. 153 |
