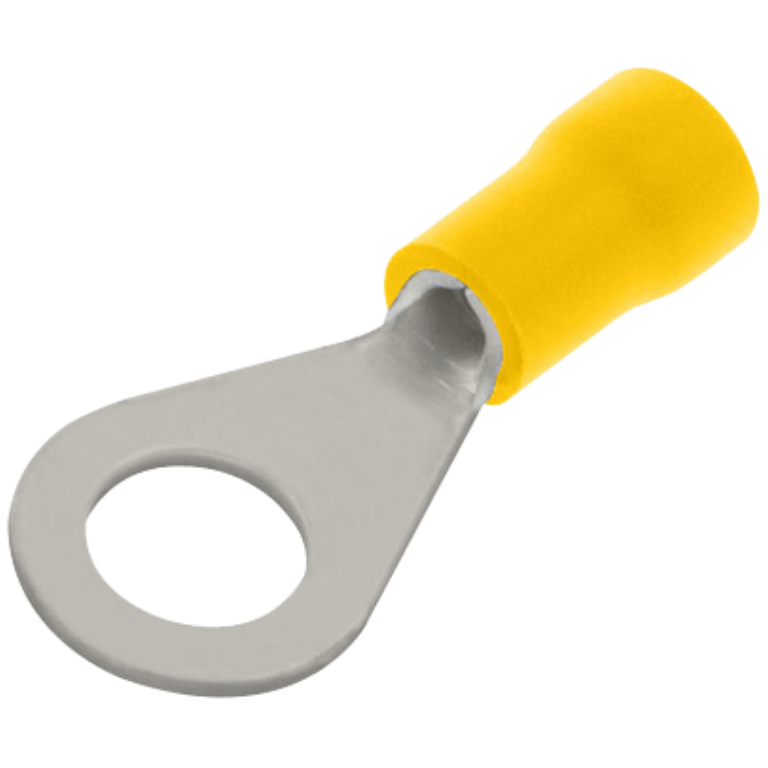

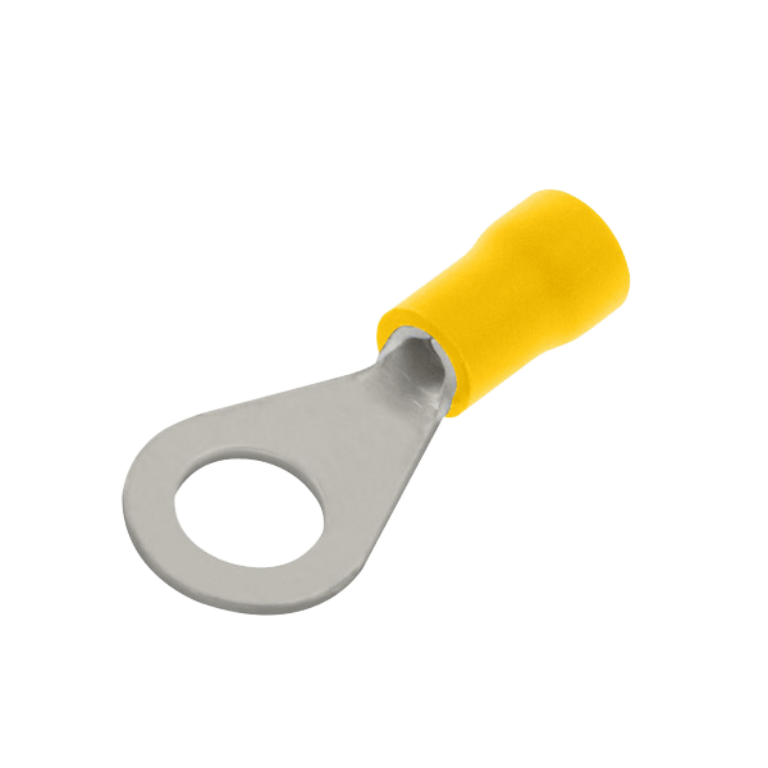

Pre Ins Terminal Yellow Ring 6mm
ONLY £
3 in stock (can be backordered)
Description
Sold by Unicrimp, this is the QYR6 Terminal Ring Yellow , stud size 6mm , pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion
Additional information
| Product | Terminal |
|---|---|
| Type | Ring Tongue |
| Qualifier | |
| Current Rating (max) | 37 A |
| Voltage (max) | 600 V |
| Insulated | |
| Terminal Material | Copper |
| Insulation Colour | Yellow |
| Cable Size Range | 2.5|4 mm2 |
| Hole/Stud Size | 6 mm |
| Insulation Material | PVC |
| Colour | |
| Finish | |

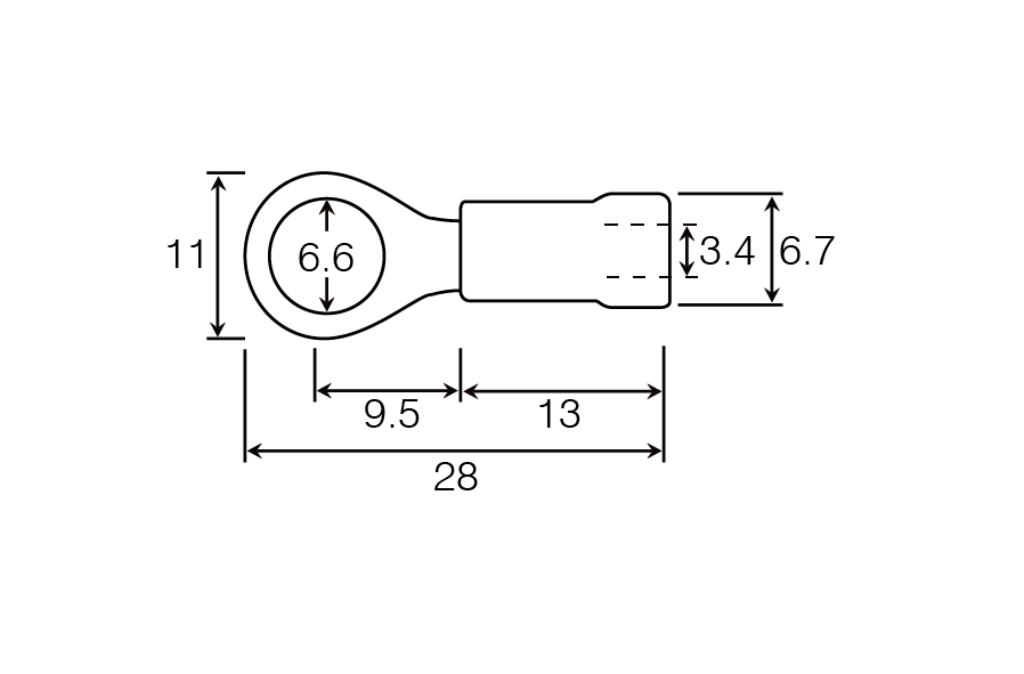

| Diameter (mm) | 6.7 mm |
| Length | 28 mm |
| Width | |
| Working Temperature | -10|75 Degrees C |
| Standards | ANSI/UL 486A-486B CAN/CSA-C22.2 No 65 ANSI/UL 486C CSA-C22.2 No. 188 ANSI/UL 310 CSA-C22.2 No. 153 |
