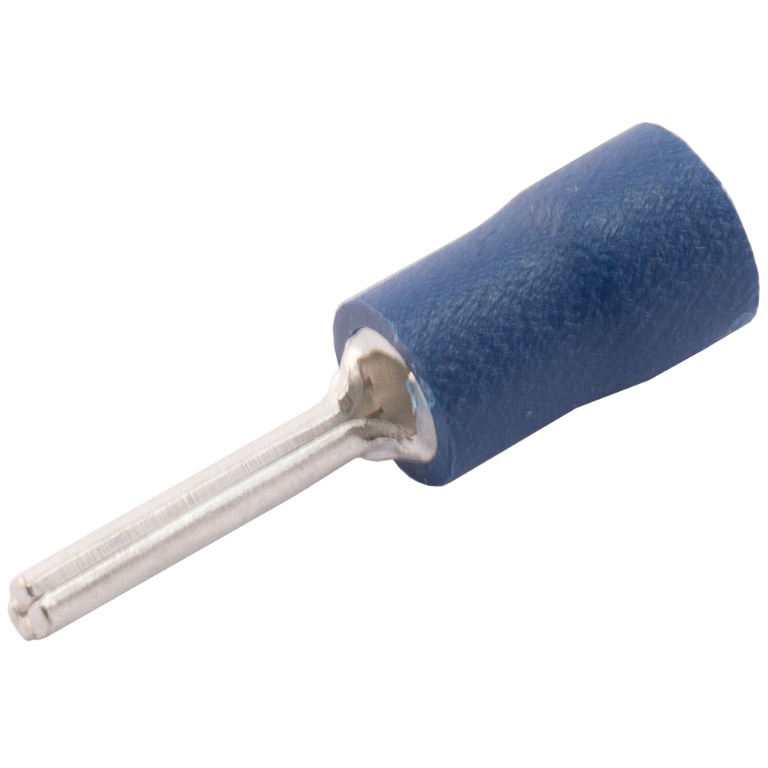

Pre Insulated Crimp Terminal Blue Pin 12mm
POACall for price
Description
Sold by SWA, this is the 12BP Pin Terminal 1.5-2.5mm Blue Insulated Pin length 17.6mm pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion
Additional information
| Current Rating (max) | 27 A |
|---|---|
| Voltage (max) | 600 V |
| Insulated | |
| Terminal Material | Copper |
| Insulation Colour | Blue |
| Cable Size Range | 16 to 14 AWG mm2 |
| Hole/Stud Size | 1.9 mm |
| Insulation Material | PVC |
| Diameter (mm) | 2.3 mm |
| Length | 22 mm |
| Standards |
